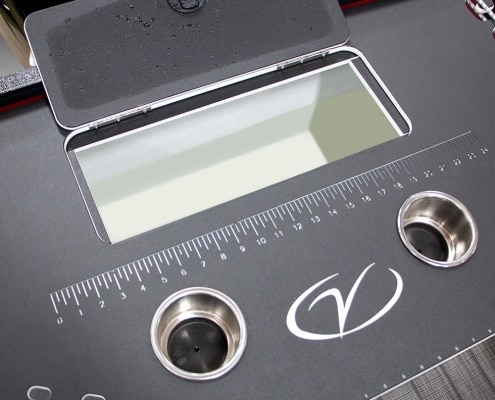

https://www.verandamarine.com/wp-content/uploads/2021/05/VF25F2plus2-Deluxe-fish-station.jpg10001000valeohttps://www.verandamarine.com/wp-content/uploads/2018/02/VERANDALOGO-300x82.pngvaleo2021-05-11 08:33:522022-05-02 17:59:14Fish Station (Fish Series Only)

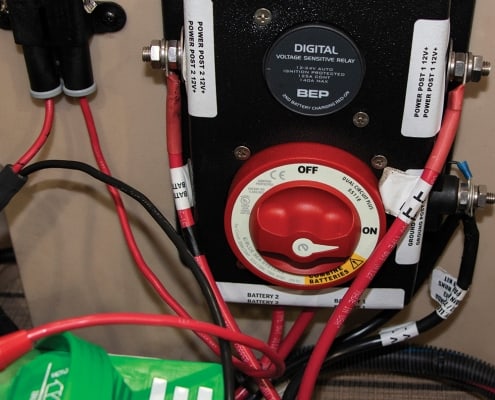

The dual battery harness with the switch is located on all Veranda Luxury Pontoons VP and Vertex Series in the aft underneath the seating or versa lounge. The harness secures both the starting battery and the accessories battery to the molded base with a polypropylene strap, making changing or replacing it quick and easy. Plus, it meets NMMA specs.
The relay allows for the charging of two independent battery banks, the starter battery, and the accessories battery, from a single charging source. When the voltage on the starter battery rises to a charged level, the relay engages allowing the second battery to charge. When charging stops and voltage falls, it will disengage, isolating the two batteries from each other. Dual sensing functionality enables the sensing of two battery banks, allowing two-way charging.
The switch allows you to control where two isolated battery banks that can combine battery banks for emergency starting.
OFF – When the white arrow on the red knob points to OFF it will not charge either battery. Use this setting when storing your pontoon. It is also recommended that you disconnect all battery terminals if you plan to store them for an extended period of time.
ON – When the white arrow on the red knob is pointed to ON, it connects house loads to the house battery and the engine to the engine battery. Both circuits are completely isolated. Basically, if you’re using your pontoon keep the switch ON.
COMBINE – If you’ve been beached or anchored for several hours with the motor off, using the audio system and lights and possibly the 12V outlet to inflate water toys, you may drain down your accessories battery, making starting the motor difficult. Just turn the white arrow on the red knob to COMBINE BATTERIES, to join the leads from both the starting battery and accessories batteries, allowing you to start your motor. Once the motor is cranked and running, be sure to switch back to ON to begin charging both batteries.
Keeping your crew happy and having a good time while out on the lake will ensure you get to spend more time on the water making great memories. The removable table is easy to set up, take down, holds drinks securely, and provides a large surface to place food or play games upon.
Find your removable table inside the center toon in-floor storage, underneath your rear-facing lounge, or below the versa lounge.
The Vertex Series uses a black polymer deck ring and pedestal base, while the VP, Relax, and Fish Series use stainless steel deck ring and base. Both are easy simple to install and easy to take down and stow away.
To set up the table on all Vertex Series you will need to insert the base of the pedestal into the deck ring, making sure the two pegs drop into the slots, then twist clockwise until it stops, now press both quick-release levers down towards the floor to lock the pedestal to the deck ring. Next, you will want to insert the table onto the top of the pedestal and push it down to ensure it’s secure.
To set up the table on all VP, Relax, and Fish Series you will need to insert the base of the pedestal into the stainless steel deck ring, making sure the 3 mounting arms drop into the slots, then twist clockwise so tabs are under the ring, now turn the black polymer ring around the base clockwise to secure the pedestal to the deck ring. Next, you will want to insert the table onto the top of the pedestal and push it down to ensure it’s secure.
The Versa Lounge was an instant hit with Veranda customers such as yourself since its introduction in 2019. The 3-position full-length rear cabin port seat back with forward-facing, rear-facing, and full-recline options deliver ultimate entertainment and tranquilizing comfort, plus the ample storage space underneath is greatly appreciated. The Versa Lounge comes on both the Versa Lounge Bench (VLB) floor plan and Versa Lounge Captain’s Chair (VLC) floor plan. The difference between the two is that the VLB features a mid-cabin bench and portable ottoman with cupholders, while the VLC offers a port captain’s chair with a cup holder tower. Both floor plans are available on the VP, Vertex, and Relax Series.
VLB (Versa Lounge Bench)
VLC (Versa Lounge Captain’s Chair)
To change the position of the full-length rear cabin port seat back, kneel on the lounge, lift up on the seat back and then push it towards the stern for forward-facing, pull it towards the midship for rear-facing, or completely lay it down flat for full-recline.
To access the storage under the cushion closest to the midship reach under the front and lift it up. The two cushions further toward the stern have vinyl handles to help you lift them open.
The portable ottoman with cupholders that are included with the VLB floor plan can be pulled away from the port side fence by tugging on the handle located on the seat base. Pull up on the vinyl handle to access the storage underneath.
Everything we do at Veranda Luxury Pontoons focuses on your comfort, confidence, and satisfaction, including the furniture we install. The mixture of soft and dense marine foam, rotational-molded wood-free seat bases with water management, and the anti-fungal infused marine-grade vinyl all work together in harmony to rejuvenate your mind, body, and soul.
The stylish rear-facing lounge (RFL) we offer on the VP, Vertex, and Relax Series is ideal for anyone seeking the best sunbathing and storage options. Doing nothing felt so good. You will appreciate the deep, full-body padding on the seats, reclined backrest, convenient built-in armrests with cup holders, and massive storage underneath. The hinged backrest opens up to provide storage below ideal for bags and the large bottom portion of the lounger will lift up for access to a large storage area that will fit inflatables, tow ropes, and PFD’s.
Another floor plan option is the very popular rear chaise (RC), which features wrap-around luxury and comfort with two individual aft chaise lounges that provide industry-leading value, time-tested style, and maximum Veranda seating. You can find RC’s on the VP, Vertex, Relax, and Vista View Series. Like the RFL’s, the hinged backrest on the rear chaises open up to provide storage down below and the bench and corner seat cushions lift up for access to additional storage areas.
Both floorplans have LED lighting and speakers installed in the seat bases, controlled from the helm.
